PV
Essential series
NanoVents PV barrier is optimized for applications with lower exposure, such as rear, signal, fog or brake lights.

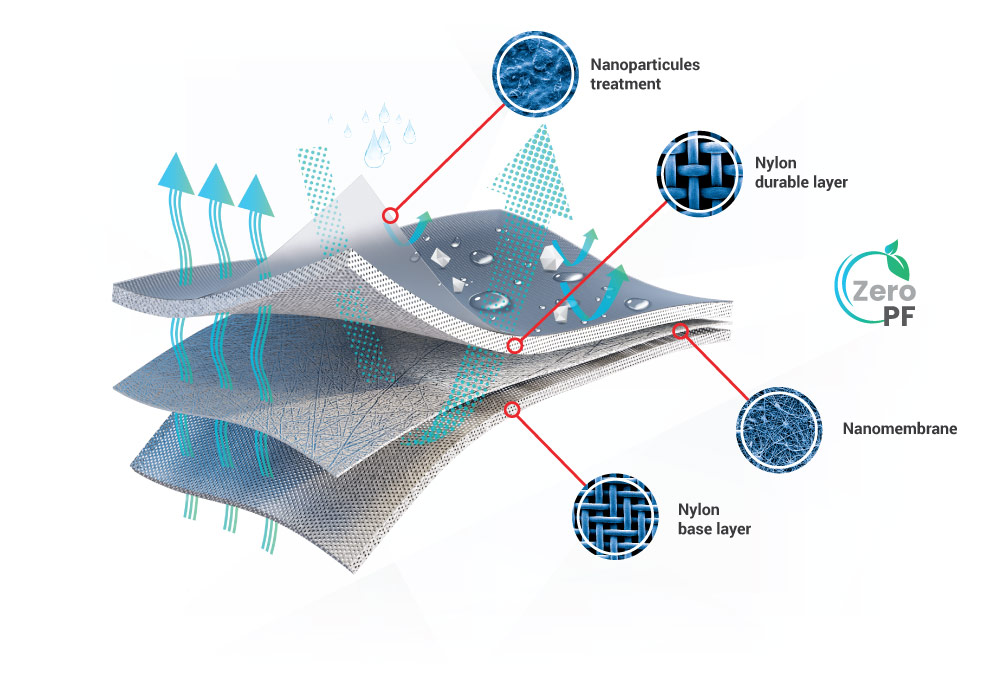

NanoVents PV elements feature a single external Nylon layer, unlike the APV series, but are also enhanced with the ultimate nanocomposite coatings to create a protective treatment against water, oils, or other liquids through reduced surface tension.
The combination of a nanomembrane and a Nylon base layer provides excellent resistance to water entry pressure (WEP), and a slightly thinner nanomembrane enhances the vapour permeability and venting capabilities.
| MULTI-LAYER COMPOSITION | FILTRATION EFFICIENCY 99% | HYDROSTATIC RESISTANCE | WEP | MVTR OUT | RET | AIRFLOW 2 mBar |
AIRFLOW 70 mBar |
|---|---|---|---|---|---|---|---|
| 3 layers |
0.3 μm |
2k - 5k mm |
195 - 490 mBar |
> 20k g/m²/24h |
< 5 Pa.m²/W |
> 5.4 L/s/m² |
> 197 L/s/m² |
